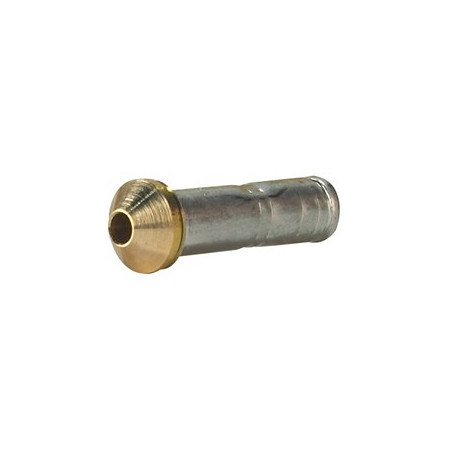

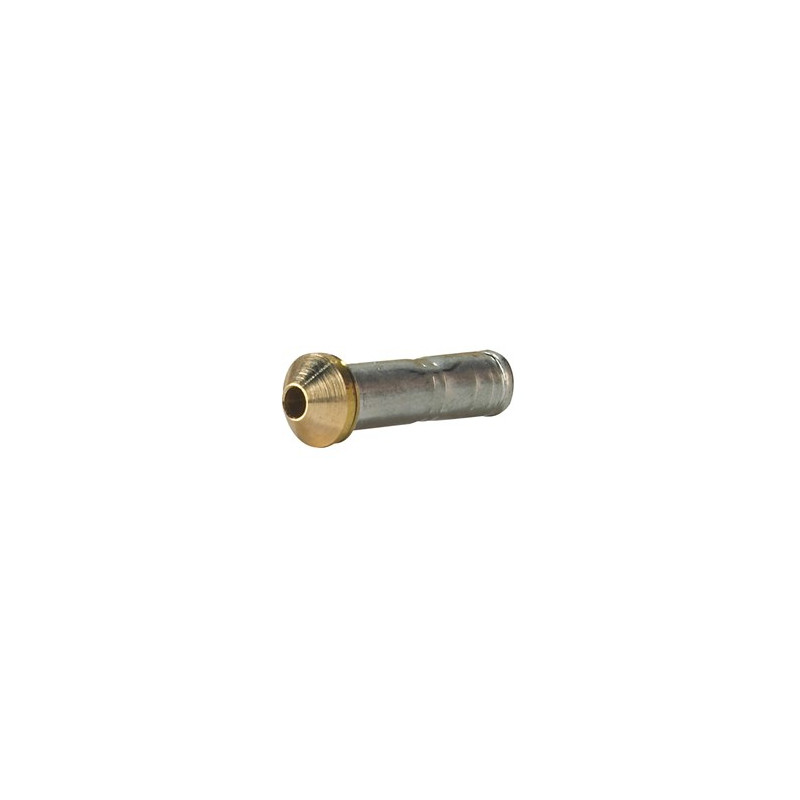

DANFOSS 0682007 T2/TE2 Orifice No.04

Product details

Gross weight 0.018 Kg

Net weight 0.013 Kg

Volume 0.019 Liter

EAN 5702422034681

Approval EAC

LLC CDC TYSK

Design SAE flare only

Fluid Group 1

Orifice size 04

Packing format Multi pack

Parts Program name T2/TE2

PED category Art. 4, par. 3

Product accessories TXV accessories

Product group Expansion valves

Product Name Description Orifice for expansion valve

Quantity per packing format 25 pc

Rated cap. cond. Range N [IMP] tcond=100 ºF

tevap=40 ºF

tliq=98 ºF

Rated cap. cond. Range N [SI] tcond=38 ºC

tevap=4.4 ºC

tliq=37 ºC

Rated cap. R134a, Range N [kW] 6.4 kW

Rated cap. R134a, Range N [TR] 1.8 TR

Rated cap. R22, Range B [kW] 5.6 kW

Rated cap. R22, Range B [TR] 1.6 TR

Rated cap. R22, Range N [kW] 12.1 kW

Rated cap. R22, Range N [TR] 3.4 TR

Rated cap. R404A, Range B [kW] 4.5 kW

Rated cap. R404A, Range B [TR] 1.3 TR

Rated cap. R404A, Range N [kW] 9.9 kW

Rated cap. R404A, Range N [TR] 2.8 TR

Rated cap. R407C, Range N [kW] 12.4 kW

Rated cap. R407C, Range N [TR] 3.5 TR

Rated cap. R507, Range B [kW] 4.5 kW

Rated cap. R507, Range B [TR] 1.3 TR

Rated cap. R507, Range N [kW] 9.9 kW

Rated cap. R507, Range N [TR] 2.8 TR

Rated cap. R513A, Range N [kW] 5.4 kW

Rated cap. R513A, Range N [TR] 1.5 TR

REACH Candidate List substances Lead (CAS no. 7439-92-1)

Refrigerants R22/R407C

R23

R236fa

R407C

R134a/R513A

R407A

R448A

R449A

R452A

R404A/R507A

SCIP dossier no. 6450ee16-252d-49df-8f77-4136a47bb857

SCIP dossier product name T2/TE2

Serviceable No

Temperature range [°C] [max] 10 °C

Temperature range [°C] [min] -40 °C

Temperature range [°F] [max] 50 °F

Temperature range [°F] [min] -40 °F

Type Orifice

Used for product T 2

TE 2
