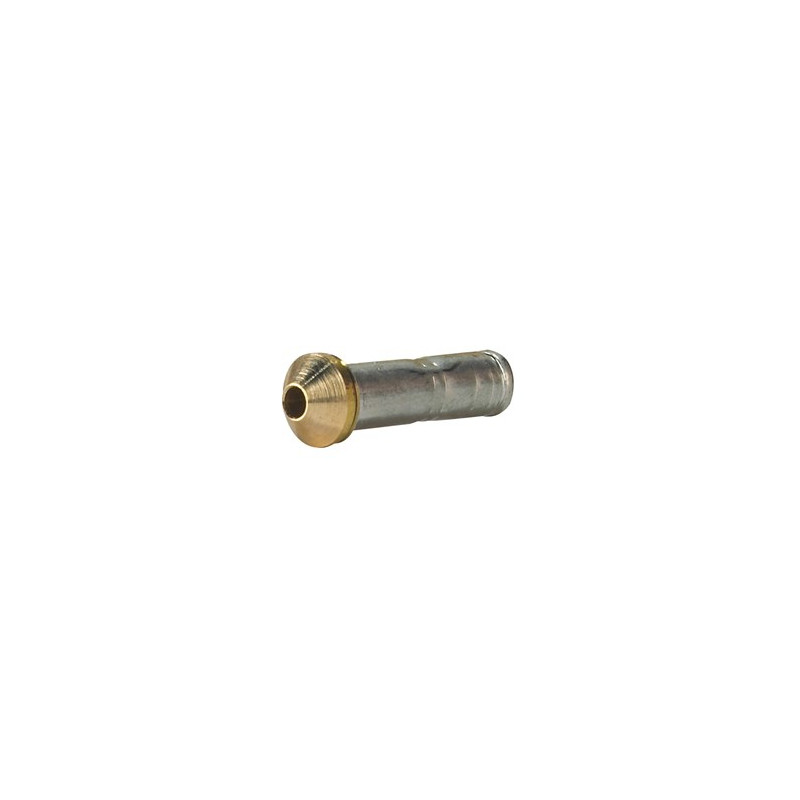

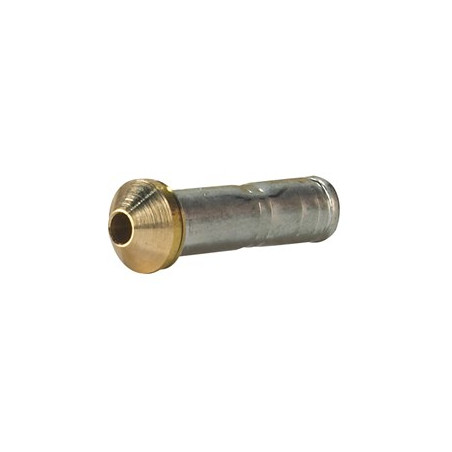

DANFOSS 0682008 T2/TE2 Orifice No.05
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Product details
Gross weight 0.018 Kg
Net weight 0.013 Kg
Volume 0.017 Liter
EAN 5702422020400
Approval EAC
LLC CDC TYSK
Design SAE flare only
Fluid Group 1
Orifice size 05
Packing format Multi pack
Parts Program name T2/TE2
PED category Art. 4, par. 3
Product accessories TXV accessories
Product group Expansion valves
Product Name Description Orifice for expansion valve
Quantity per packing format 25 pc
Rated cap. cond. Range N [IMP] tcond=100 ºF
tevap=40 ºF
tliq=98 ºF
Rated cap. cond. Range N [SI] tcond=38 ºC
tevap=4.4 ºC
tliq=37 ºC
Rated cap. R134a, Range N [kW] 8.4 kW
Rated cap. R134a, Range N [TR] 2.4 TR
Rated cap. R22, Range B [kW] 7.3 kW
Rated cap. R22, Range B [TR] 2.1 TR
Rated cap. R22, Range N [kW] 16.7 kW
Rated cap. R22, Range N [TR] 4.8 TR
Rated cap. R404A, Range B [kW] 5.9 kW
Rated cap. R404A, Range B [TR] 1.7 TR
Rated cap. R404A, Range N [kW] 13 kW
Rated cap. R404A, Range N [TR] 3.7 TR
Rated cap. R407C, Range N [kW] 16.5 kW
Rated cap. R407C, Range N [TR] 4.7 TR
Rated cap. R507, Range B [kW] 5.9 kW
Rated cap. R507, Range B [TR] 1.7 TR
Rated cap. R507, Range N [kW] 13 kW
Rated cap. R507, Range N [TR] 3.7 TR
Rated cap. R513A, Range N [kW] 6.9 kW
Rated cap. R513A, Range N [TR] 2 TR
REACH Candidate List substances Lead (CAS no. 7439-92-1)
Refrigerants R22/R407C
R23
R236fa
R407C
R134a/R513A
R407A
R448A
R449A
R452A
R404A/R507A
SCIP dossier no. 6450ee16-252d-49df-8f77-4136a47bb857
SCIP dossier product name T2/TE2
Serviceable No
Temperature range [°C] [max] 10 °C
Temperature range [°C] [min] -40 °C
Temperature range [°F] [max] 50 °F
Temperature range [°F] [min] -40 °F
Type Orifice
Used for product T 2
TE 2
